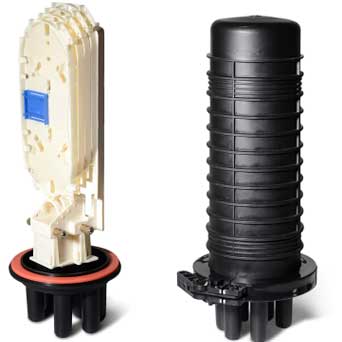

Vertical Type Fiber Optic Splice Closure

Name: Vertical Type Fiber Optic Splice Closure
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

FOSC-008 closures are a combination cable closure and splice organizer. The splicing joint is on the middle of splice tray. They combine mechanical seals and heat-shrinkable sleeves with hot-melt adhesives to environmentally seal fiber cable splice points. It is designed for use with any cable construction (loose buffer tube, central core tube, loose fiber, and ribbon), in any environment (aerial, pedestal, buried, hand hole, and manhole), and for numerous splice applications (express, tap-off, branch, and repair).conform the standard communications industry of The People's Republic of China: YD/T814-2004.

Get Quote Now

Features of Vertical Type Fiber Optic Splice Closure

1. The closure can be used in duct, buried, overhead..etc

2. High quality impact material. pp and internal is ABS

3. Easy open tray.

4. Fiber storage with metal bracket.

5. Modular fiber management system

6. Cable diameter range: 9~22

7. Sealing way of cables: Mechanical seaing by silicon rubber

8. Quality warranty:2 years

9. Life span: more than 25 years

10. IP rating is IP68

Parameters of Vertical Type Fiber Optic Splice Closure

Specification:

①Temperature: -30℃- +60℃ Atmospheric Pressure:70-106Kpa.

②Life Span: More than 20 years.

③Material: Higt strength polypropylene(PP).

Splice tray number/model	12f/1tray	24f/1tray
one splice tray	12 cores	24 cores
two splice trays	24 cores	48cores
three splice trays	36 cores	72 cores
four splice trays	48 cores	96 cores

Dimension of inlets/outlets and the closure

Model	Inlets/outlets	Max trays	Cables(mm ) round	Val(mm)	Val(mm) D*H(mm)
FOC-008	5	4	8~20	62X35	Ø130*440
FOC-008	6	4	8~20	62X35	Ø130*440

GROMMET INSIDE CABLE RANGE CAN BE MADE REQIURE

(1)Remark: one oval port can be suit for 2 cables, which diameter can be from 8mm to 2mm. and use for inline cutting.

(2) Environment Temperature: -30℃~+60℃ ,Atmospheric Pressure：70kPa~106kPa
