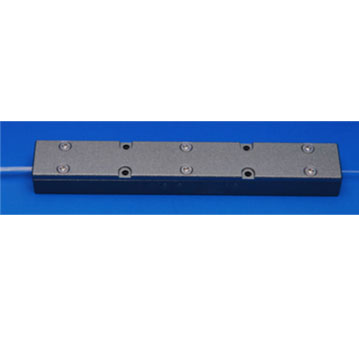

(18+1) x1 Pump Optical fiber Combiner

(18+1) x1 Pump Optical fiber Combiner

The (18+1) x1 pump combiner produced by PHX is specially designed to be used in the field of high-power fiber lasers and fiber amplifiers. It combines 18 channels of pump energy and 1 channel of signa...
Get Quote Now
(18+1) x1 Pump Optical fiber Combiner

Characteristics of (18+1) x1 Pump Optical fiber Combiner


  • High pump coupling efficiency

  • High signal transmission efficiency

  • Wavelength insensitive

  • High extinction ratio

  • High power operation

Specifications of (18+1) x1 Pump Optical fiber Combiner

Specification

Signal Operating

Pump Fiber

Input Signal Fiber

Output  Fiber

Signal

Pump

Power

Per Port

(18+1)X1

1000~1100

105/125 0.15

X/125 GDF or GSF Hi1060

X/125GDF

0.5

95

50W

1000~1100

105/125 0.15or0.22

X/125 GDF or GSF Hi1060

20/400GDF

0.5

98

150W

Package Dimension

70X13X8mm,82x19x11mm,100x19x11mm     X:Fiber Core Diamatar


Application Fields of Polarization Maintaining Pump Combiner

  • Fiber laser

  • Optical fiber amplifier

  • Scientific research
