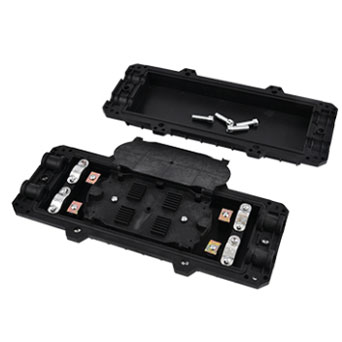

Horizontal Type Fiber Optic Splice Closure

Horizontal Type Fiber Optic Splice Closure

Vertical (Dome) fiber optic splice closures are made of excellent engineering plastics. PHX supplies different ports types, fittings, and different fiber optic core numbers for vertical/dome fiber optic. Splice Closure is suitable for protecting optical fiber splices in straight-through and branching applications and can be used in aerial, duct, and direct buried fiber optic cable projects.
Get Quote Now
Horizontal Type Fiber Optic Splice Closure

Specification of Horizontal Type Fiber Optic Splice Closure

Sealing Type

Mechanical Seal Type

Dimensions

415*165*95mm/ 385*190*100mm/ 460*180*108mm



Weight

1.6KG/1.5KG/3.5KG



Cable Ports

4 Entries (2 on each side)

Diameter of Cable Ports

Ф10~Ф16/ Ф10~Ф25


Number of Splice Trays (Max)

1/ 2/ 4

Max Capacity of Fiber

24/ 48/ 96

Working Temperature

-40~65°C

Opening Type

Anti-removable Screw-Type

Installation Type

Aerial

Material

PC+ABS
