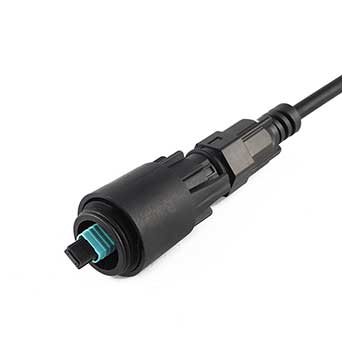

IP-Series MPO

Name: IP-Series MPO
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

Cost-effective solution for in-house termination. Low insertion loss and added loss. Height of attenuation. IP67 water, dustproof, and corrosion-resistant. The material in the jumper cable is all-weather and UV-resistant. RoHS and REACH materials are compliant.

Get Quote Now

LC/SC/FC/ST Optical Characteristics

Item	Parameter		Reference
Item	Single-mode	Multimode
Insertion Loss	Typical value≤0.15dB Maximum≤0.3dB	Typical value≤0.15dB Maximum≤0.3dB	IEC 61300-3-34
Return Loss	≥60dB (APC) ≥50dB (UPC)	≥30dB (UPC)	IEC 61300-3-6

MPO&MTP Optical Characteristics

Item	Parameter				Reference
	Single-mode		Multimode
	Standard	Elite	Standard	Elite
Insertion Loss	Typical value≤0.3dB Maximum≤0.75dB	Typical value≤0.15dB Maximum≤0.35dB	Typical value≤0.5dB Maximum≤0.25dB	Typical value≤0.10dB Maximum≤0.35dB	IEC 61300-3-34
Return Loss	≥60dB (APC) ≥50dB (UPC)	≥65dB (APC) ≥55dB (UPC)	≥30dB (UPC)	≥30dB (UPC)	IEC 61300-3-6

Fiber Optic Solutions We Serve

Autonomous Vehicles

Optical Fiber Used in Optical Communication System

Optical Communication Systems

Local Area Networks

CATV Systems
