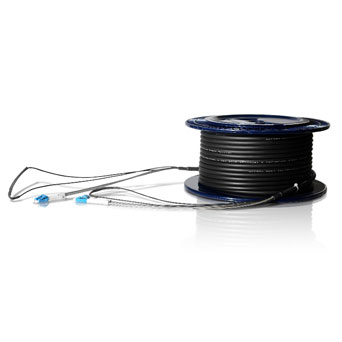

CPRI Outdoor Cable Assembly

CPRI Outdoor Cable Assembly

Easily add/install jumper cables for a future expansion. Low insertion loss and added loss. Height of attenuation. Flexibility with a small bending radius and excellent cable routing properties. End-face geometry and quality are superior to IEC and Telcordia standards. The material in the jumper cable is all-weather and UV-resistant.
Get Quote Now
CPRI Outdoor Cable Assembly

Product Parameters of CPRILC-CPRILC

Item

Parameter


Single Mode

Multimode

Insertion Loss

Typical value≤0.15dB

Maximum≤0.30dB

Typical value≤0.15dB

Maximum≤0.30dB

Return Loss

≥60dB(APC)

≥50dB(UPC)

≥30dB(UPC)

Durability

500 times a plug

Operation Temperature

-40 to + 85℃


Connector Types of CPRILC-CPRILC

Type

Reference

Jumper tolerance requirement

LC

IEC 61754-20

Single mode duplex

APC: Green connectors , Green boots

UPC: Blue connectors , White boots

Multimode duplex

UPC: Grey connectors , White boots

SC

IEC 61754-4

Single mode simplex

APC: Green connectors, Green boots

UPC: Blue connectors, Blue boots

Multimode simplex

UPC: Grey connectors, Grey boots


Features

1. Easily add/install jumper cables for a future expansion.

2. Low insertion loss and added loss.

3. Height of attenuation.

4. Flexibility with small bending radius and excellent cable routing properties.

5. End-face geometry and quality superior than IEC and Telcordia standards.

6. The material in the jumpel cable are all-weather and UV-resistant.

7. Mechanical performance: IEC 61754-20 standard.

8. RoHS and REACH materials compliant.


Application

1. Multi-purpose Outdoor.

2. For connection between distribution box and RRH.

3. Deployment in Remote Radio Head cell tower applications.
