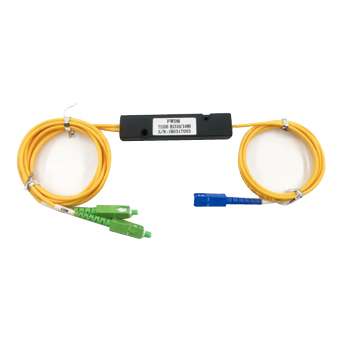

FWDM Cassette

Name: FWDM Cassette
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

The FWDM CASSETTE of PHX adopts thin-film filter with excellent performance to ensure high-quality optical performance, stability and reliability. The filtered wavelength division multiplexer can realize optical signal transmission and segmentation in 1310nm, 1490nm and 1550nm communication windows, and can also realize optical fiber bidirectional communication. It is widely used in optical fiber upgrading, capacity expansion or the introduction of new integrated services, such as radio and television, telecommunications, Internet and so on.

Get Quote Now

Characteristics of FWDM Cassette

1. Low insertion loss

2. Low polarization dependent loss

3. High isolation

4. High stability and reliability

Parameters of FWDM Cassette

Parameter		FWDM-4/53	FWDM-5/34	FWDM-34/5
Transmission wavelength (nm)		1480~1500	1540~1560	1260~1360&1480~1500
Reflection wavelength 1 (nm)		1260~1360	1260~1360	1540~1560
Reflection wavelength 2 (nm)		1540~1560	1480~1500
Insertion loss (DB)	Reflection channel	≤0.6
	Transmission channel	≤0.6
Channel flatness (DB)		≤0.3
Isolation (DB)	Reflection channel	＞15
	Transmission channel	＞30
Insertion loss thermal stability (dB / ℃)		＜0.005
Polarization dependent loss (DB)		＜0.1
Polarization dispersion (PS)		＜0.1
Directivity (DB)		＞50
Return loss (DB)		＞50
Maximum luminous power (MW)		1000
Operating temperature (℃)		-20~+80
Storage temperature (℃)		-40~+85
Package size (mm)		Φ5.5x34 (L38 for 900um loose tube)
