High Power Coupler

Name: High Power Coupler
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

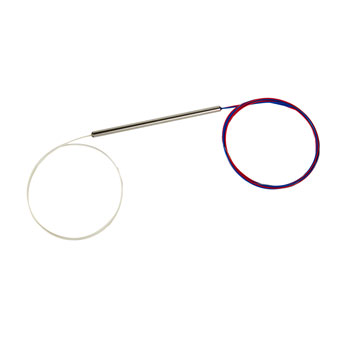

High power coupler is also know as high power directional coupler, which is built to split the optical power or wavelength through Fused Biconic Taper (FBT) technique. Handling power of High power coupler is up to 10W.

Get Quote Now

Key Features of High Power Directional Coupler

1. High power handling up to 10W

2. 1×2 or 2×2 type

3. Parameter refer to telecom coupler

4. CW and Pulse available

Specifications of High Power Directional Coupler

		1550nm Band Coupler (SMF-28e Fiber)		1060nm Band Coupler (OFS Fiber)
Grade		P	A	A
Port Configuration		1x2 or 2x2
Typical Excess Loss (dB)		0.07	0.1	0.1
Insertion Loss(dB)	50/50	≤3.4	≤3.6	≤3.6
	40/60	≤4.4/2.6	≤4.7/2.8	≤4.7/2.8
	30/70	≤5.7/1.9	≤6.0/2.0	≤6.0/2.0
	20/80	≤7.6/1.25	≤8.0/1.3	≤8.0/1.3
	10/90	≤11.0/0.65	≤11.5/0.8	≤11.5/0.8
	5/95	≤14.2/0.4	≤14.8/0.5	≤14.8/0.5
	3/97	≤16.7/0.3	≤17.2/0.4	≤17.2/0.4
	2/98	≤18.5/0.25	≤19/0.35	≤19/0.35
	1/99	≤21.5/0.2	≤22.0/0.3	≤22.0/0.3
PDL (dB)		≤0.1	≤0.15	≤0.15
Directivity (dB)		≥55
Operating Temperature (℃）		-40 ~ +85
Package Dimension		250μm Bare Fiber: Φ3.0×45mm, Φ3.0×54mm 900μm Loose Tube: Φ3.0×54mm 250μm/900um Loose Tube: 70×12×8mm

Ordering Information of High Power Directional Coupler

HPSMC	X	XXX	XXXX	XX/XX	X	X	XXX	XX/XX
	Grade	Port Number	Operating Wavelength	Coupling Ratio	Pigtail Type	Encapsulation Steel Tube &ABS box	Fiber Length	Connector
	P=Perfect	1×2	1550=1310&1550	1/99	1=250um	3.0mm×54mm	1m	FC/UPC
	A=Grade A	2×2	1550	50/50	2=900um	70mm×12mm×8mm	1.5m	FC/APC
	X=Customized				4=others		2m	SC/UPC
