1×2 or 2×2 All Band Coupler (ABC)

Name: 1×2 or 2×2 All Band Coupler (ABC)
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

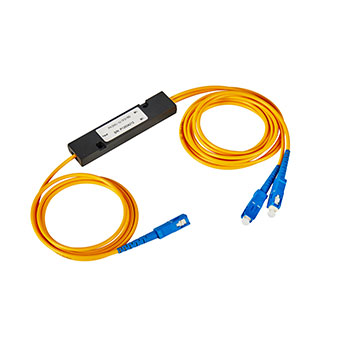

Single Mode All Band Coupler is also know as single mode fiber coupling, which is built to split the optical power or wavelength through Fused Biconic Taper (FBT) technique. The operating wavelength of 1×2 or 2×2 Single Mode All Band Coupler is from 1260nm to 1620nm.

Get Quote Now

Applications of 1×2 Or 2×2 Single mode All Band Coupler (ABC)

1. Optical communication systems

2. CATV

3. FTTX

4. Testing instruments

Specifications of 1×2 Or 2×2 Single mode All Band Coupler (ABC)

		All Band Coupler (ABC)
Grade		P	A
Port configuration		1x2 or 2x2
Operating Wavelength (nm)		1260~1620
Typical excess loss (dB)		0.07	0.10
Insertion Loss (dB)	50/50	≤3.8	≤4.0
	40/60	≤5.1/3.1	≤5.3/3.3
	30/70	≤6.4/2.3	≤6.7/2.5
	20/80	≤8.3/1.7	≤8.8/1.8
	15/85	≤9.9/1.4	≤10.1/1.50
	10/90	9.10~11.10≤1.15	8.65~11.50≤1.25
	5/95	11.90~14.30≤0.8	11.40~14.80≤0.9
	2/98	15.45~18.75≤0.7	14.75~19.40≤0.8
	1/99	18.25~21.95≤0.65	17.50~22.70≤0.75
PDL (dB)		≤0.15	≤0.20
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85
Package Dimension		250μm bare fiber: Φ3.0×45mm 900μm loose tube: Φ3.0×54mm 900um/2mm/3mm loose tube: 90×20×10mm

*The above specification is without connector.

**Other specifications can be made on customer request.

Ordering Information of 1×2 Or 2×2 Single mode All Band Coupler (ABC)

ABC	X	XXX	XXXX	XX/XX	X	X	XXX	XX/XX
	Grade	Port number	Operating Wavelength	Coupling Ratio	Pigtail Type	Encapsulation steel tube	Fiber Length	Connector
	P=Perfect	1×2	1260~1620	01/99	0=250um	3.0×45	1m	FC/UPC
	A=Grade A	2×2		02/98	1=900um	3.0×54	1.5m	FC/APC
	X=customized			03/97	4=others		2m	SC/UPC
			…	…			…	…
