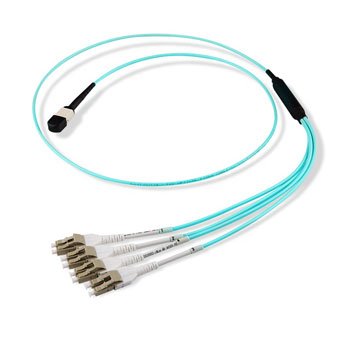

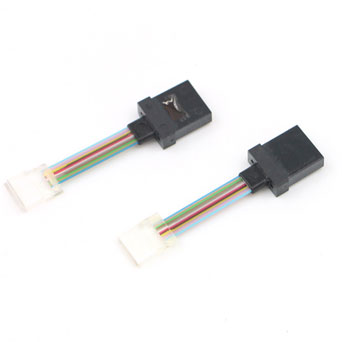

High Density Patch Cords

Name: High Density Patch Cords
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

100% pre-terminated and tested in the factory to ensure transfer performance. Rapid configuration and networking, reduce installation time. Supports 40G and 100G network applications. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

Get Quote Now

MPO&MTP Optical Characteristics

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical value≤0.3dB Maximum≤0.75dB	Typical value≤0.15dB Maximum≤0.35dB	Typical value≤0.5dB Maximum≤0.25dB	Typical value≤0.10dB Maximum≤0.35dB	IEC 61300-3-34
Return loss	≥60dB(APC) ≥50dB(UPC)	≥65dB(APC) ≥55dB(UPC)	≥30dB(UPC)	≥30dB(UPC)	IEC 61300-3-6

LC/SC/FC/ST Optical Characteristics

Item	Parameter		Reference
Item	Single mode	Multimode	Reference
Insertion loss	Typical value≤0.15dB Maximum≤0.3dB	Typical value≤0.15dB Maximum≤0.3dB	IEC 61300-3-34
Return loss	≥60dB(APC) ≥50dB(UPC)	≥30dB(UPC)	IEC 61300-3-6

Cable Parameters of High Density Patch Cords

Cable Count	Out sheath Diameter （MM)	Weight （KG)	Max.tensile Strength(N)		Max.Crush Resistance (N/100mm)		Min. Bending Radius(mm)
Cable Count	Out sheath Diameter （MM)	Weight （KG)	short term	long term	short term	long term	short term	long term
8	3.0±0.15	6.8	180	90	500	150	20D	10D
12	3.0±0.15	7.0	180	90	500	150	20D	10D

Features

1. 100% pre-terminated and tested in factory to ensure transfer performance.

2. Rapid configuration and networking, reduce installation time.

3. Supports 40G and 100G network applications.

4. Cable Jacket material: LSZH, OFNR, OFNP available.

5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

Application

1. Data communication network.

2. Optical System Access network.

3. Storage area networking fiber channel.

4. High density architectures.
