LC Fiber Optic Adapter

Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping. r With Flange

Get Quote Now

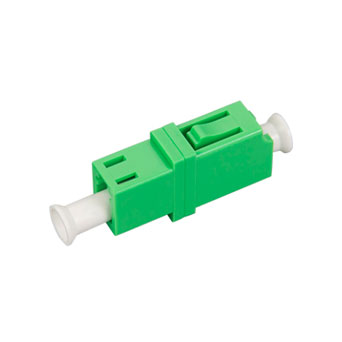

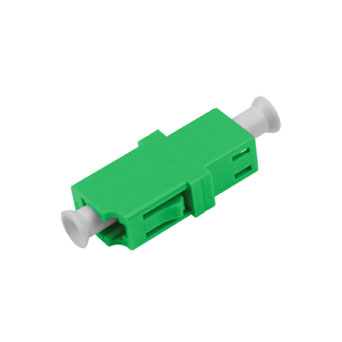

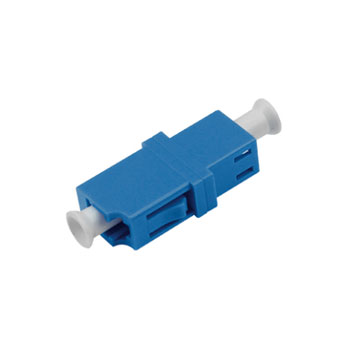

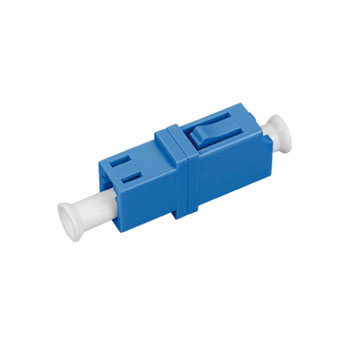

Specification of LC UPC/APC SX Adapter Without Flange

Adapter Type	LC	Body Style	Simplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

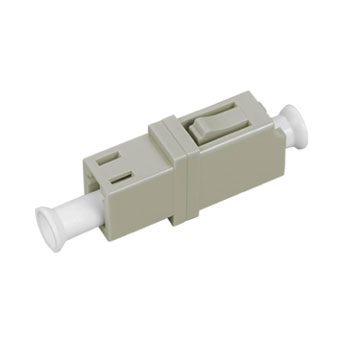

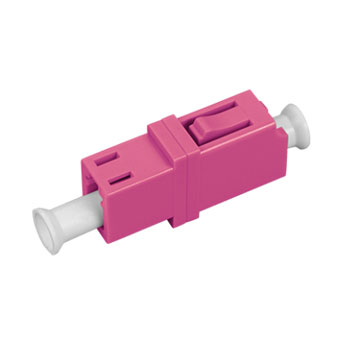

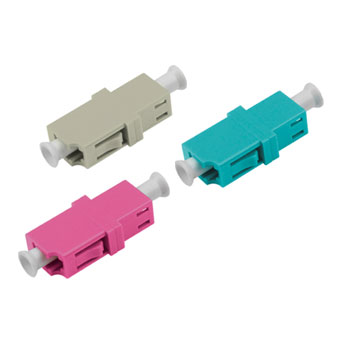

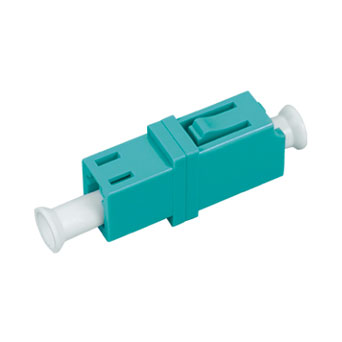

Specification of LC MM/OM3/OM4 SX Adapter Without Flange

Adapter Type	LC	Body Style	Simplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

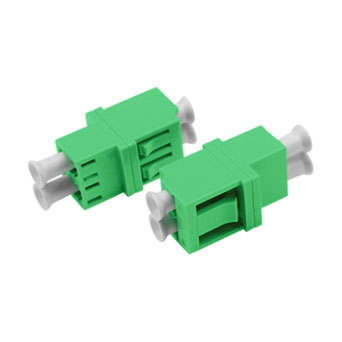

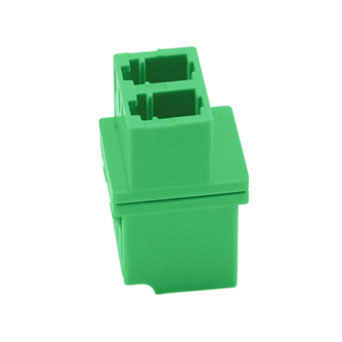

Specification of LC UPC/APC DX High-Low Adapter

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

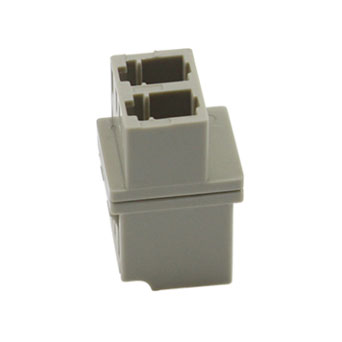

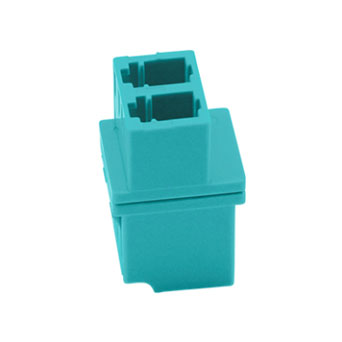

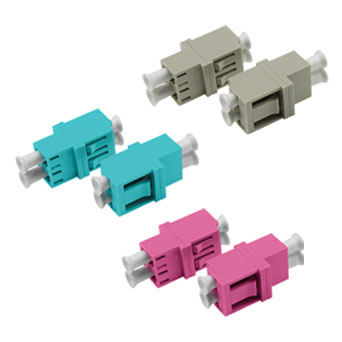

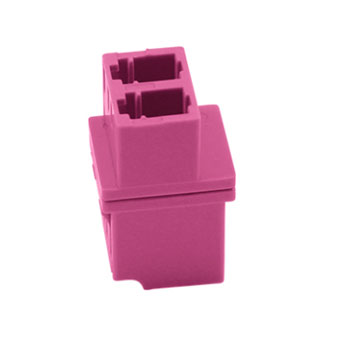

Specification of LC MM/OM3/OM4 DX High-Low Adapter

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

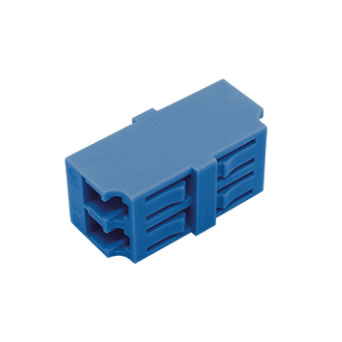

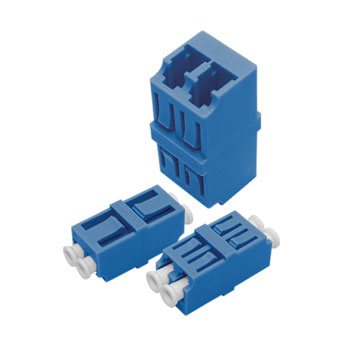

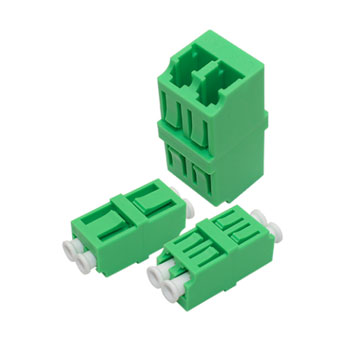

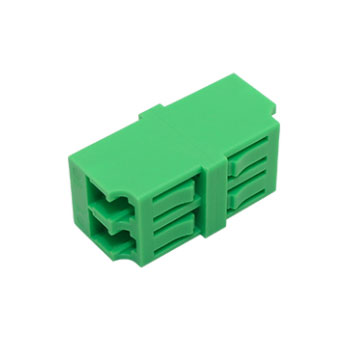

Specification of LC UPC/APC DX High-High Adapter

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

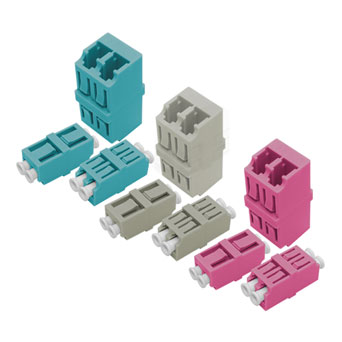

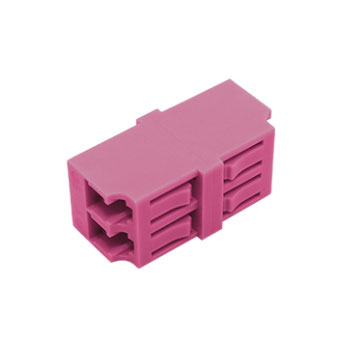

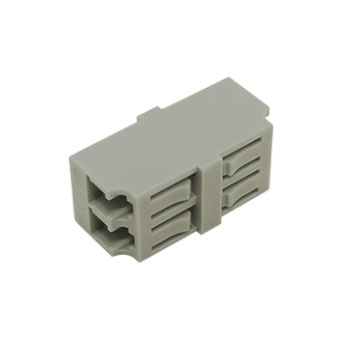

Specification of LC MM/OM3/OM4 DX High-High Adapter

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

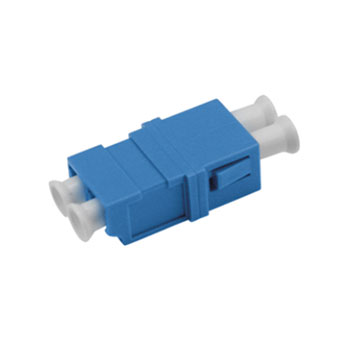

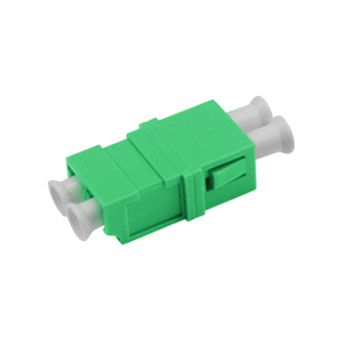

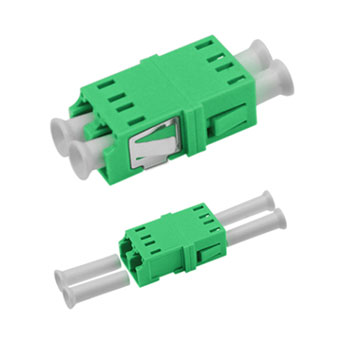

Specification of LC UPC/APC DX Asymmetric Welding Adapter Without Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

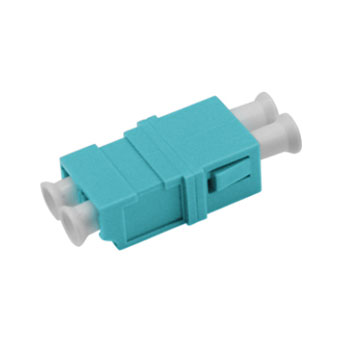

Specification of LC MM/OM3/OM4 DX Asymmetric Welding Adapter Without Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC UPC/APC DX Asymmetric Welding Adapter With Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC MM/OM3/OM4 DX Asymmetric Welding Adapter With Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC UPC/APC DX Welding Symmetry-type Adapter Without Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC MM/OM3/OM4 DX Welding Symmetry-type Adapter Without Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC UPC/APC DX Welding Symmetry-type Adapter With Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC MM/OM3/OM4 DX Adapter Without Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC DX Metal Adapter

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC/APC	Connector Fiber Mode	Singlemode/Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Metal	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC UPC/APC DX One-piece Adapetr With Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC MM/OM3/OM4 DX One-piece Adapter With Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC UPC/APC DX One-piece Adapetr Without Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC MM/OM3/OM4 DX Adapter Without Flange

Adapter Type	LC	Body Style	Duplex
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC UPC/APC QUAD Asymmetric Welding Adapter Without Flange

Adapter Type	LC	Body Style	QUAD
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC MM/OM3/OM4 QUAD Asymmetric Welding Adapter Without Flange

Adapter Type	LC	Body Style	QUAD
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	Without Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC UPC/APC QUAD Asymmetric Welding Adapter With Flange

Adapter Type	LC	Body Style	QUAD
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC MM/OM3/OM4 QUAD Asymmetric Welding Adapter With Flange

Adapter Type	LC	Body Style	QUAD
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC UPC/APC QUAD One-piece Adapter With Flange

Adapter Type	LC	Body Style	QUAD
Connector Polish Type	UPC/APC	Connector Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC MM/OM3/OM4 QUAD One-piece Adapter With Flange

Adapter Type	LC	Body Style	QUAD
Connector Polish Type	PC	Connector Fiber Mode	Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Beige/Aqua/Violet	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Specification of LC QUAD Metal Adapter

Adapter Type	LC	Body Style	QUAD
Connector Polish Type	PC/APC	Connector Fiber Mode	Singlemode/Multi mode
Insertion Loss	≤0.2dB	Durability	>1000times
Mounting Type	With Flange	Aligment Sleeve Material	Ceramic
Color	Blue/Green	RoHS Compliancy Status	Compliant
Alternationg Loss	≤0.2dB	Working temperature	-40~85°C
Repeatability	≤0.2dB	Storage temperature	-40~85°C

Fiber Optic Solutions We Serve

Autonomous Vehicles

Optical Fiber Used in Optical Communication System

Optical Communication Systems

Local Area Networks

CATV Systems

Get More Fiber Optic Equipment News Here

May 21 2024

Understanding PLC Splitters: Essential Components of Modern Fiber-Optic Networks

Jan 23 2024

FBT vs. PLC splitters

HAVE ANY QUESTIONS?GET IN TOUCH

Tel: +86-760-88589319

E-mail: sales@phxfiber.com

Address: Address1: 4th floor, No.43 Keji West Road, Torch Development Zone, Zhongshan, Guangdong

Address2: 2nd floor, Smart City West, 1288# Honghe Rd, Jinghe District, Zaozhuang, Shandong

Address3: 62/23 Village No. 3, Khlong Nueng Subdistrict, Khlong Luang District Pathum Thani, Thailand

LC Fiber Optic Adapter

Specification of LC UPC/APC SX Adapter Without Flange

Specification of LC MM/OM3/OM4 SX Adapter Without Flange

Specification of LC UPC/APC DX High-Low Adapter

Specification of LC MM/OM3/OM4 DX High-Low Adapter

Specification of LC UPC/APC DX High-High Adapter

Specification of LC MM/OM3/OM4 DX High-High Adapter

Specification of LC UPC/APC DX Asymmetric Welding Adapter Without Flange

Specification of LC MM/OM3/OM4 DX Asymmetric Welding Adapter Without Flange

Specification of LC UPC/APC DX Asymmetric Welding Adapter With Flange

Specification of LC MM/OM3/OM4 DX Asymmetric Welding Adapter With Flange

Specification of LC UPC/APC DX Welding Symmetry-type Adapter Without Flange

Specification of LC MM/OM3/OM4 DX Welding Symmetry-type Adapter Without Flange

Specification of LC UPC/APC DX Welding Symmetry-type Adapter With Flange

Specification of LC MM/OM3/OM4 DX Adapter Without Flange

Specification of LC DX Metal Adapter

Specification of LC UPC/APC DX One-piece Adapetr With Flange

Specification of LC MM/OM3/OM4 DX One-piece Adapter With Flange

Specification of LC UPC/APC DX One-piece Adapetr Without Flange

Specification of LC MM/OM3/OM4 DX Adapter Without Flange

Specification of LC UPC/APC QUAD Asymmetric Welding Adapter Without Flange

Specification of LC MM/OM3/OM4 QUAD Asymmetric Welding Adapter Without Flange

Specification of LC UPC/APC QUAD Asymmetric Welding Adapter With Flange

Specification of LC MM/OM3/OM4 QUAD Asymmetric Welding Adapter With Flange

Specification of LC UPC/APC QUAD One-piece Adapter With Flange

Specification of LC MM/OM3/OM4 QUAD One-piece Adapter With Flange

Specification of LC QUAD Metal Adapter

Fiber Optic Solutions We Serve

Related Optical Fiber Adapter
