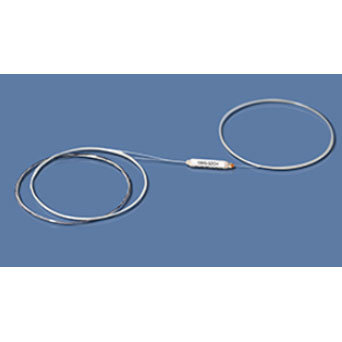

100GHz DWDM

Name: 100GHz DWDM
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

DWDM 100GHz devices are based on Thin-Film Technology and All-Glass Packaged platform, keeping the device in compact size and excellent performance. Channels comply with ITU grid.

Get Quote Now

Application of 100GHz DWDMf

1. Line monitoring.

2. WDM Network.

3. Telecommunications.

4. Cellular Application.

5. Fiber Optical amplifier.

6. Access network.

Features of 100GHz DWDMf

1. Low insertion loss.

2. Wide Passband.

3. High Channel Isolation .

4. High Stability and reliability.

5. Epoxy-free on Optical Path.

Product Parameters of 100GHz DWDMf

Parameters	Unit		Specifications Standard	Specifications Premium
Operating Wavelength Range	nm		1520~1570	1460~1640
Channel Spacing	GHz		200
Channel Pass Band	nm		ITU±0.22	ITU±0.25
Channels	nm		ITU Grid
Pass Band Ripple	Max	dB	0.35	0.25
Channel Insertion Loss	Max	dB	0.80(Typical 0.60)	0.60(Typical 0.50)
Reflection Channel Insertion Loss	Max	dB	0.40(Typical 0.35)	0.30(Typical 0.25)
Adjacent Channel Isolation	Max	dB	30	35
Non-Adjacent Channel Isolation	Max	dB	45	50
Reflection Channel Isolation	Min	dB	13	15
Return Loss	Min	dB	45	50
Polarization Dependent Loss	Max	dB	0.15	0.10
Power Handling	Max	mW	300
Tensile Load	Max	N	5
Operation Temperature Range	℃		-40 to 85
Storage Temperature Range	℃		-40 to 85
Fiber Jacket & Fiber Length	cm		Customized
Package Dimensions-Type 1	mm		＜3.8(Φ)*30(L)
Package Dimensions-Type 2	mm		＜4.2(Φ)*30(L)
Package Dimensions-Type 3	mm		＜5.5(Φ)*58(L)
FiberType	G.652D/G.657A1(Customized)
Fiber Marking	Customized

*Above specifications are for devices without connector.
