Shenzhen Puhuixin Tecnhnology Co., Ltd.

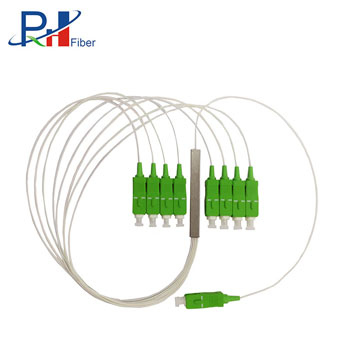

Mini Type PLC Splitter

Mini Type PLC Splitter

PHX 1 × 8 Mini single-mode PLC planar waveguide beam splitter, using 9 μm casing, compact structure and high stability; SC / APC connector has uniform light splitting and is not sensitive to wave. It is widely used in FTTX projects and data centers.
Get Quote Now
Mini Type PLC Splitter

Characteristics of Mini Type PLC Splitter

1. Stable transmission performance

2. The optical signal is evenly distributed

3. Plug and play

Specification of Mini Type PLC Splitter

Package type

Mini

Port configuration

1X8

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

SC/APC

Spectral ratio

50/50

Fiber diameter

900μm

Fiber length

1.5M

IL

≤10.5dB

RL

≥55dB

UF

≤0.8dB

DIR

≥55dB

PDL

≤0.2dB

TDL

≤0.5dB

WDL

≤0.3dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃

Steel size(H x W x D)

4x60x7mm
