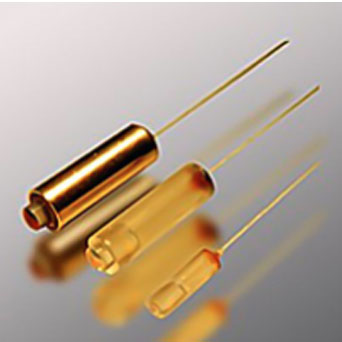

C-lens Fiber Optic Collimator

C-lens Fiber Optic Collimator

PHX optical collimator adopts micro optical fiber lens and unique manufacturing process. It has many advantages that traditional optical fiber collimator cannot match, such as small spot diameter, high coupling efficiency, high return loss and high optical power rate. It has passed the examination of GR-1209-Core & GR-1221-Core, making ultra-small optical fiber device possible.Including Faraday mirror, variable optical attenuator and a variety of passive fiber devices; It is especially suitable for making all kinds of small optical fiber sensor probes, and can provide different tail-fiber ultra-small optical fiber collimator according to the needs of customers.
Get Quote Now
C-lens Fiber Optic Collimator

Specifications of C-lens Fiber Optic Collimator

Center Wavelength

1550nm, 1480nm, 1310nm, 1060nm, 850nm

Bandwidth

±30nm

Working Distance (In the air)

5mm

Beam Diameter

60±5mm

Typical Coupling Loss@1550nm

0.25dbB(SMF28) grade P 0.25dbB(SMF28)

Return Loss@23℃

-57dB

Damage Threshold Power

1000mW

Operating Temperature Range

-5～+70ºC

Storage Temperature Range

-40～+85ºC


Product features of fiber optic collimator

  1. Low insertion loss

  2. Light path without glue

  3. Compact structure

  4. High reliability and stability

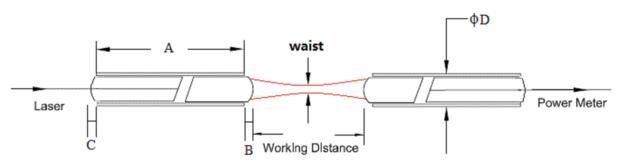

Dimensions of optical fiber lens

C-lens Fiber Optic Collimator


Optical collimator application

  • Optical fiber components and modules

  • Free space optical path integration

  • Chemical test system

  • Sensing system

Products

Fiber Optic Solutions We Serve

Optical technology in Autonomous Vehicles
Autonomous Vehicles
Autonomous Vehicles
Optical Fiber Used in Optical Communication System
Optical Communication Systems
Optical Communication Systems
Optical Fiber Used In Local Area Networks
Local Area Networks
Local Area Networks
Optical Fiber Used In CATV Systems
CATV Systems
CATV Systems

Related Fiber Optic Collimator

3 Port Fiber Optic Circulator
3 Port Fiber Optic Circulator
Coarse Wavelength Optical Division Multiplexer
Coarse Wavelength Optical Division Multiplexer
FTTH-006 Optical Fiber Panel
FTTH-006 Optical Fiber Panel
100G, 200G DWDM
100G, 200G DWDM
High Power Coupler
High Power Coupler
1×N(N×N) Monolithic Multi-Mode Coupler
1×N(N×N) Monolithic Multi-Mode Coupler
FC/UPC Optical Fiber Mechanical Splice
FC/UPC Optical Fiber Mechanical Splice
17-CH O BAND, 1550GH2 DWDM AWG
17-CH O BAND, 1550GH2 DWDM AWG
1×2 or 2×2 Dual Window Coupler (DWC)
1×2 or 2×2 Dual Window Coupler (DWC)
(18+1) x1 Pump Optical fiber Combiner
(18+1) x1 Pump Optical fiber Combiner
1XN(2≤N≤128) Rack Type Optical Switch
1XN(2≤N≤128) Rack Type Optical Switch
MEMS 1xN(2≤N≤48) Optical Switch Module
MEMS 1xN(2≤N≤48) Optical Switch Module
Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules
Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules
Fused WDM Module (1310/1550)
Fused WDM Module (1310/1550)
Single Mode All Band Coupler
Single Mode All Band Coupler
PM Fiber Optic Circulator
PM Fiber Optic Circulator
Polarization Maintaining Coupler
Polarization Maintaining Coupler
7x1 Pump Optical fiber Combiner
7x1 Pump Optical fiber Combiner
1×2(2×2) Multi-Mode Coupler
1×2(2×2) Multi-Mode Coupler
1×2 or 2×2 All Band Coupler (ABC)
1×2 or 2×2 All Band Coupler (ABC)
MEMS 1xN(2≤N≤48) Optical Switch With External PCB
MEMS 1xN(2≤N≤48) Optical Switch With External PCB
100GHz DWDM
100GHz DWDM
FTTH-004 Optical Fiber Terminal Box
FTTH-004 Optical Fiber Terminal Box
Mechanical Optical Switch
Mechanical Optical Switch
1×3(1×4) Monolithic Single Mode Coupler
1×3(1×4) Monolithic Single Mode Coupler
FWDM Cassette
FWDM Cassette
4CH Lan-WDM Spec
4CH Lan-WDM Spec
1310/1550 FBT WDM
1310/1550 FBT WDM
MEMS MxN Matrix Type Optical Switch
MEMS MxN Matrix Type Optical Switch
CWDM Mux/Demux in Lgx Box (4.8.16.18 CH)
CWDM Mux/Demux in Lgx Box (4.8.16.18 CH)

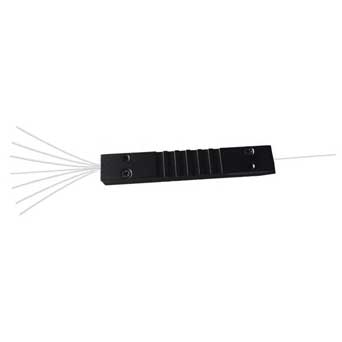

Nx1 Pump Combiner
Nx1 Pump Combiner
Optical Fiber Mechanical Splice
Optical Fiber Mechanical Splice
FTTH-016 Optical Fiber Panel
FTTH-016 Optical Fiber Panel

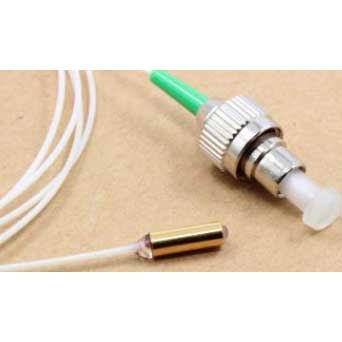

G-lens Fiber Optic Collimator
G-lens Fiber Optic Collimator
4 Port Fiber Optic Circulator
4 Port Fiber Optic Circulator
Single Mode Double Window Coupler
Single Mode Double Window Coupler
Wide Band Coupler
Wide Band Coupler
Mini Size Coupler (MSC)
Mini Size Coupler (MSC)

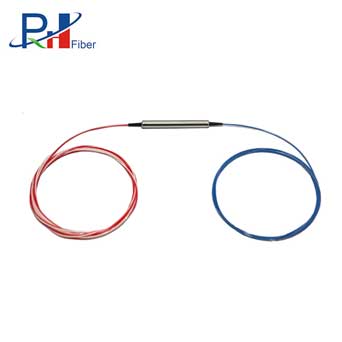

PM Fiber Optic Isolator
PM Fiber Optic Isolator
Mini Type PLC Splitter
Mini Type PLC Splitter
(2+1) x1 Pump Optical Fiber Buncher
(2+1) x1 Pump Optical Fiber Buncher
FWDM
FWDM
100G HEAT-FREE AWG (40 CH)
100G HEAT-FREE AWG (40 CH)
LC Optical Fiber Mechanical Splice
LC Optical Fiber Mechanical Splice
3 Port Multimode Filtered Wavelength Division Multiplexer (1310/1550)
3 Port Multimode Filtered Wavelength Division Multiplexer (1310/1550)
Quick Connector Type ESC250D
Quick Connector Type ESC250D
FTTH-022 Optical Fiber Panel
FTTH-022 Optical Fiber Panel
FTTH-015 Optical Fiber Terminal Box
FTTH-015 Optical Fiber Terminal Box

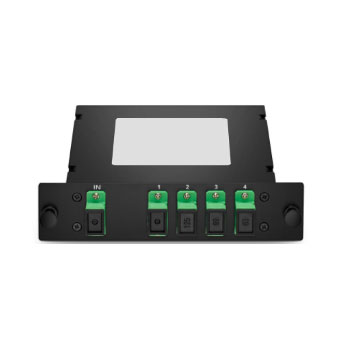

LGX PLC Splitter
LGX PLC Splitter
1×2 or 2×2 Special Wavelength Coupler
1×2 or 2×2 Special Wavelength Coupler
FTTH-005 Optical Fiber Terminal Box
FTTH-005 Optical Fiber Terminal Box

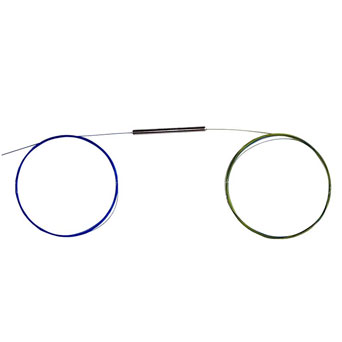

Filtered WDM (980/1550, 1480/1550)
Filtered WDM (980/1550, 1480/1550)
3×3(4×4) Monolithic Single Mode Coupler
3×3(4×4) Monolithic Single Mode Coupler
SC Optical Fiber Mechanical Splice
SC Optical Fiber Mechanical Splice

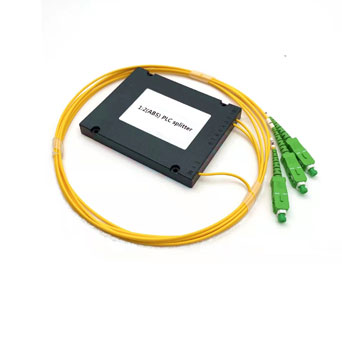

ABS Box PLC Splitter
ABS Box PLC Splitter

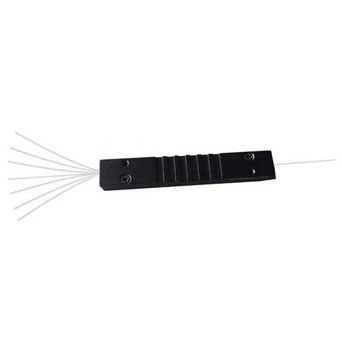

PM (N+1)x1 Pump Combiner
PM (N+1)x1 Pump Combiner
1×N (2×N) FBT Coupler Module
1×N (2×N) FBT Coupler Module

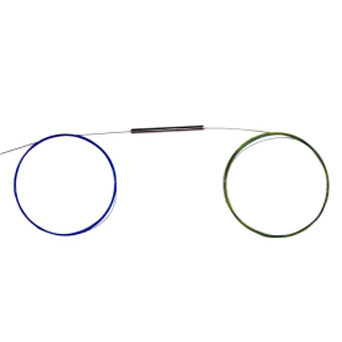

FBT WDM (MPO 980/1550,1480/1550)
FBT WDM (MPO 980/1550,1480/1550)
1×2 or 2×2 Wide Band Coupler (WBC)
1×2 or 2×2 Wide Band Coupler (WBC)
(6+1)x1 Pump Optical fiber buncher
(6+1)x1 Pump Optical fiber buncher
3 Port FWDM Chassis Type
3 Port FWDM Chassis Type
In-line Isolator
In-line Isolator
SC Auto Shutter Connector And Adapter
SC Auto Shutter Connector And Adapter

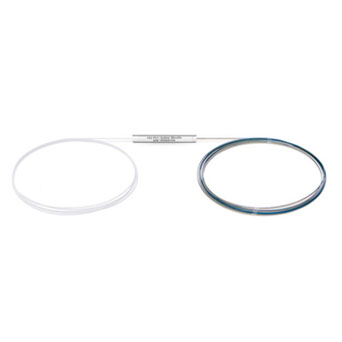

PLC Splitter Device
