May 21 2024
On the edge of the blade, the cleaving position from 1~12 is marked. | |
When it does not leave the fiber normally, clean the cleaving edge part, and rubber pad with alcohol-soaked cotton. (But, when cleaning rubber pad, do not use acetone or solvent) | |
And if it still does not leave, it means the cleaving edge is fully used, operators are required to change the cleaving position by the following order. | |

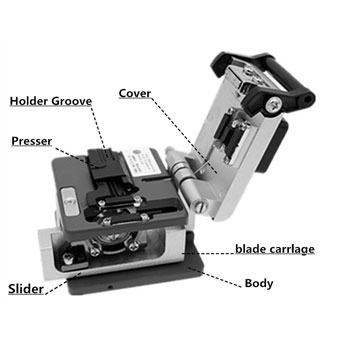

Cleaving Position Adjustment | 1. Open the cover and make the blade carriage come out to the front of the body and hold it tight with your hands. |
2. Release 2 set screws (1st setscrew location: left of CAM, 2nd setscrew: backside of blade carriage). | |
3. Rotate the blade counter-clockwise. The blade is originally fixed on "position 1". Treat the blade with care not to touch the tip of the blade. | |
4. Take the reverse order. (Fasten the setscrew with equal strength) |
