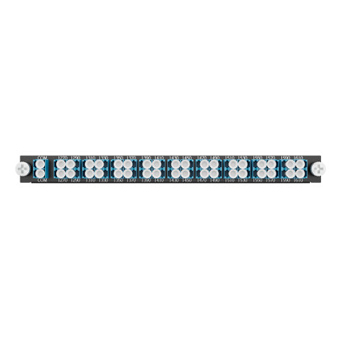

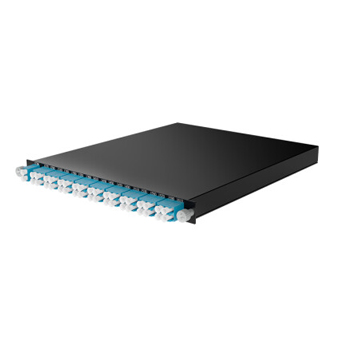

CWDM Mux/Demux in Lgx Box (4.8.16.18 CH)

Name: CWDM Mux/Demux in Lgx Box (4.8.16.18 CH)
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

PHX can provide CWDM Mux/Demux lgx box coarse wavelength division multiplexers with three conventional channels: 8, 16 and 18. The channel, fiber diameter and connector type can be customized. CWDM Mux/Demux is widely used in metropolitan fiber and CATV systems.

Get Quote Now

Characteristics of CWDM Mux/Demux in Lgx Box (4.8.16.18 CH)

1. High isolation and large capacity

2. Easy installation and hot plugging

3. Low insertion loss, high stability and small volume

Parameters of CWDM Mux/Demux in Lgx Box (4.8.16.18 CH)

Channel spacing（GHz）		100
Insertion loss(DB)		≤6.0
Isolation degree	adjacent	＞25
	Non adjacent	＞30
Crosstalk (DB)		＞23
Return loss (DB)		＞45
Fiber type		Corning SMF-28e/SMF-28e or customized
Maximum optical power (MW)		300
Operating temperature (℃)		-20~+75
Package size (mm)		(L)120(W)70(H)12.7mm
