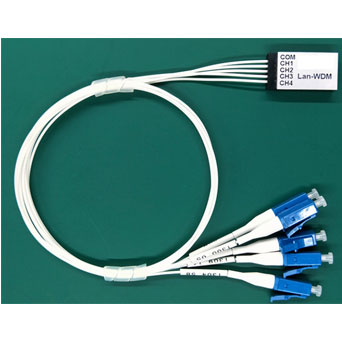

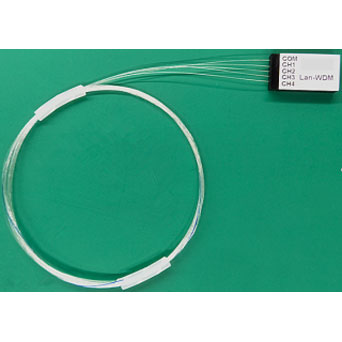

4CH Lan-WDM Spec

4CH Lan-WDM Spec

PHX's 4CH LAN-WDM wavelength Spec is based on FTTH (thin film filter) wavelength division multiplexing technology, using free mechanism encapsulation, with four channels, each channel is very fine test wavelength, low insertion loss, better consistency, good for LOCAL area networks, data centers, and other applications.
Get Quote Now
4CH Lan-WDM Spec
4CH Lan-WDM Spec

Performance Specifications of 4CH Lan-WDM Spec

Items

Unit

Parameter

Channels Number

CH

4

Channel Wavelength

CH1

nm

1294.53-1296.59

CH2

1299.02-1301.09

CH3

1303.54-1305.63

CH4

1308.09-1310.19

Channel Spacing

GHz

800

Insertion Loss

Premium Grade

dB

≤1.5

Standard Grade

≤1.9

Isolation

Adjacent

dB

≥25

Non-adjacent

dB

≥35

Channel Ripple

dB

≤0.5

Temperature-Dependent Loss

dB

≤0.5

Polarization Dependent Loss

dB

≤0.5

Polarization Mode Dispersion

ps

≤0.2

Uniformity

dB

≤1.0

Return Loss

dB

≥45

Directivity

dB

≥50

Operating Power

mw

500

Fiber Type

/

900um loose tube or 250um bare fiber, G657A1

Fiber Length

m

1.0+/-0.05

Operating Temperature

℃

-10~+70

Storage Temperature

℃

-40~+85

Package Size

mm

L21×W12.9×H6.4

Connector

/

TBD
