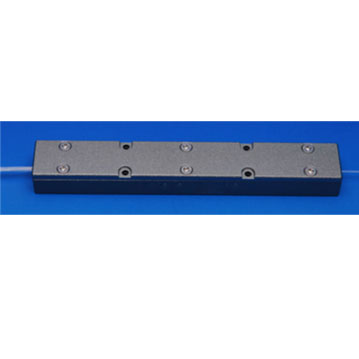

(6+1)x1 Pump Optical fiber buncher

Name: (6+1)x1 Pump Optical fiber buncher
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

The (6+1) x1 pump combiner produced by PHX is designed for high power fiber lasers. It couples six pump lasers and a signal light into a double clad fiber for output, and then converts multimode pump light into a core device of high power lasers by welding ytterbium doped fibers. The single arm can reach 300W, and the total power can reach about 2000W.

Get Quote Now

Characteristic of（6+1）x1 Pump Optical Fiber Buncher:

• high pump coupling efficiency

• High signal transmission efficiency

• Wavelength insensitive

• high extinction ratio

• high power operation

Performance Specification of（6+1）x1 Pump Optical Fiber Buncher：

Specification	Signal Operating	Pump Fiber	Input Signal Fiber	Output Fiber	Signal	Pump	Power Per Port
（6+1）X1	1000~1100	105/125 0.15or0.22	X/125 GSF or GDF	X/125GDF	0.7	90	50W
	1000~1100	105/125 0.15or0.22	X/125 GSF or GDF	X/200GDF	0.5	95	50W
	1000~1100	105/125 0.15or0.22	X/125 GSF or GDF	X/250GDF	0.5	97	50W
	1000~1100	105/125 0.15or0.22	X/125 GSF or GDF	X/400GDF	0.5	95	50W
	1000~1100	200/220 0.22	X/250 GDF	X/250GDF	0.7	97	50W
	1000~1100	200/220 0.22	X/250 GDF	X/400GDF	0.5	97	200W
	1000~1100	200/220 0.22	X/400 GDF	X/400GDF	0.7	97	200W
	1000~1100	200/242 0.22	X/250 GDF	X/250GDF	0.7	97	50W
	1000~1100	200/242 0.22	X/250 GDF	X/400GDF	0.5	97	200W
	1000~1100	200/242 0.22	X/400 GDF	X/400GDF	0.7	97	200W
	1550	105/125 0.15	SMF-28e or 8/125 0.14/0.46 DCF	8/125 0.14/0.46 GDF	0.7	90	50W
Package Dimension	70X13X8mm，82x19x11mm，100x19x11mm X:Fiber Core Diamatar

Application fields of polarization maintaining pump combiner:

• Fiber laser

• Fiber amplifier

• Coherent communication

• Scientific research
