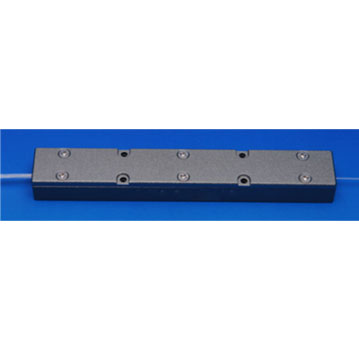

7x1 Pump Optical fiber Combiner

Name: 7x1 Pump Optical fiber Combiner
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

The 7x1 pump beam combiner produced by PHXfiber is designed to couple the 7-way pump light to a single fiber output, and is specially designed for applications in high-power fiber lasers...

Get Quote Now

Characteristic of 7x1 Pump Optical fiber Combiner

High pump coupling efficiency
High signal transmission efficiency
Wavelength insensitive
High extinction ratio
High power operation

Specification of 7x1 Pump Optical fiber Combiner

Specification	Signal Operating	Pump Fiber	Output Fiber	Pump	Power Per Port
7X1	800~1000	105/125 0.15	200/220 0.22	90	50W
	800~1000	105/125 0.15	200/242 0.22	96	50W
	800~1000	105/125 0.15	400/440 0.22	97	100W
	800~1000	105/125 0.15	X/125GDF	93	50W
	800~1000	105/125 0.15	X/200GDF	97	100W
	800~1000	105/125 0.15	X/250GDF	97	100W
	800~1000	105/125 0.15	X/400GDF	98	100W
	800~1000	105/125 0.22	400/440 0.22	93	150W
	800~1000	105/125 0.22	X/200GDF	93	150W
	800~1000	105/125 0.22	X/250GDF	94	150W
	800~1000	105/125 0.22	X/400GDF	97	150W
	800~1000	200/220 0.22	X/400GDF	97	200W
	800~1000	200/242 0.22	X/400GDF	97	200W
Package Dimension	70X13X8mm，82x19x11mm，100x19x11mm X:Fiber Core Diamatar

Application Fields of Polarization Maintaining Pump Combiner

Fiber laser
Medical laser
Laser welding
Scientific research, etc
