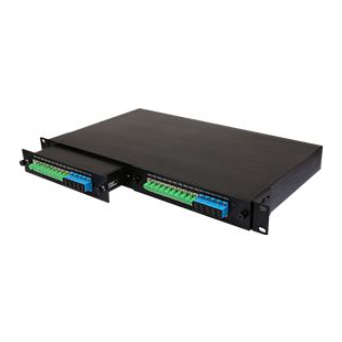

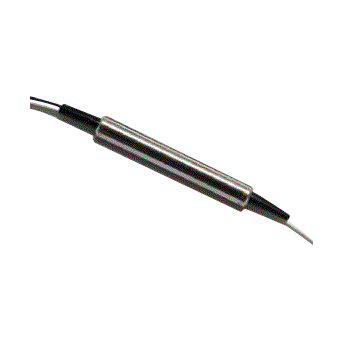

3 Port FWDM Chassis Type

Name: 3 Port FWDM Chassis Type
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

PHX's 3-port chassis fwdm adopts excellent thin-film filter to ensure high-quality optical performance, stability and reliability. The filtered wavelength division multiplexer can realize optical signal transmission and segmentation in 1310nm, 1490nm and 1550nm communication windows, and can also realize optical fiber bidirectional communication. It is widely used in optical fiber upgrading, capacity expansion or the introduction of new integrated services, such as radio and television, telecommunications, Internet and so on.

Get Quote Now

Characteristics of 3 Port FWDM Chassis Type

1. Low insertion loss

2. Low polarization dependent loss

3. High isolation

4. High stability and reliability

Parameters of 3 Port FWDM Chassis Type

Parameter		FWDM-4/53	FWDM-5/34	FWDM-34/5
Transmission wavelength (nm)		1480~1500	1540~1560	1260~1360
Reflect Band Wavelength Range（nm）		1260~1360	1260~1360	1480~1500
Reflect Band Wavelength Range（nm）		1540~1560	1480~1500	1540~1560
Insertion loss (DB)	Reflection channel	≤0.8
	Transmission channel	≤1.0
Channel flatness (DB)		≤0.3
Isolation @Add/Drop Channel (DB)	Reflection channel	＞15
	Transmission channel	＞30
Insertion loss thermal stability (dB / ℃)		＜0.005
Polarization dependent loss (DB)		＜0.1
Polarization dispersion (PS)		＜0.1
Directivity (DB)		＞50
Return loss (DB)		＞50
Maximum luminous power (MW)		500
Operating temperature (℃)		-20~+80
Storage temperature (℃)		-40~+85
Package Dimension (mm)(LGX Box)		L180xW178(215.4)xH44 or Specify
Package Dimension (mm)(1U Rackmount)		L432（482.6）xW250*H44 or Specify
