SC/APC SM Connector

Name: SC/APC SM Connector
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

PHX design, develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.

Get Quote Now

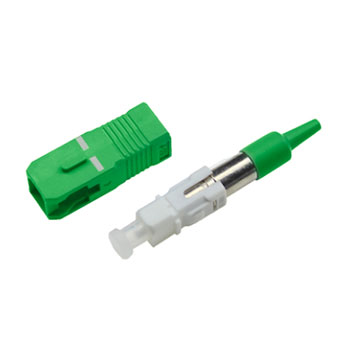

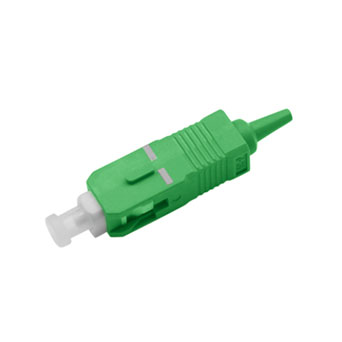

SC/APC 0.9mm Connector

Connector Parts: Dust Cap, Green Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Green Boot

SC/APC 0.9mm Connector

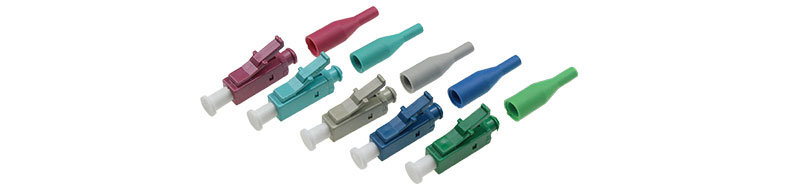

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

SC/APC 0.9mm Connector

Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

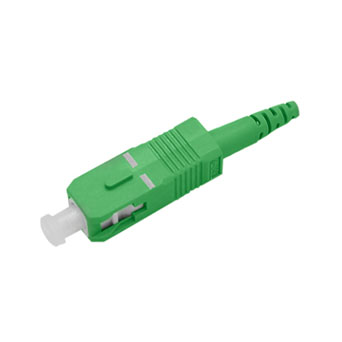

SC/APC 1.2mm Connector

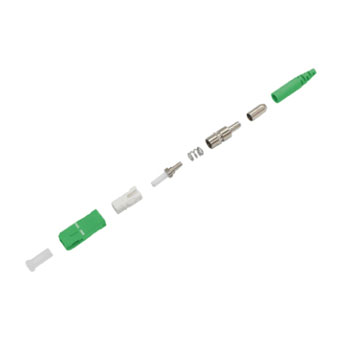

Connector Parts: Dust Cap, Green Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Crimp Sets, Green Boot

SC/APC 1.2mm Connector

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

SC/APC 1.2mm Connector

Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

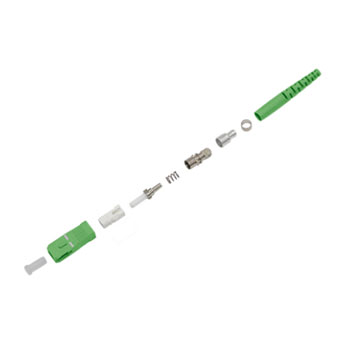

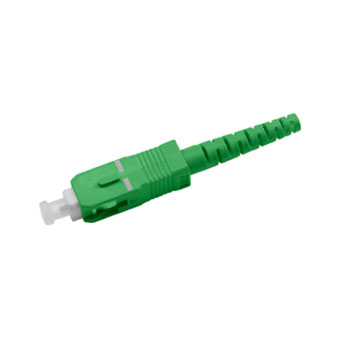

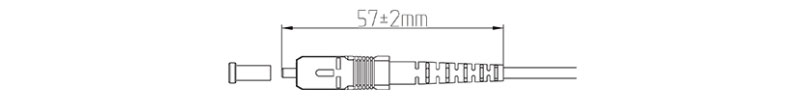

SC/APC 2.0mm/3.0mm Connector

Connector Parts: Dust Cap, Green Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Crimp Sets, Ring, Green Boot

SC/APC 2.0mm/3.0mm Connector

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

SC/APC 2.0mm/3.0mm Connector

Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

Specification of SC/APC 0.9mm Connector

Fiber Count	Simplex	Insertion Loss	≤0.25dB
Fiber Mode	Single Mode	Return Loss	≥60dB (APC)
Polish Type	APC	Durability	>1000times
Cable Diameter	0.9mm	Operating Temp	-40~85°C
Operating wavelength	1310nm, 1550nm	Ferrule Concentricity	≤1um

Specification of SC/APC 1.2mm Connector

Fiber Count	Simplex	Insertion Loss	≤0.25dB
Fiber Mode	Single Mode	Return Loss	≥60dB (APC)
Polish Type	APC	Durability	>1000times
Cable Diameter	1.2mm	Operating Temp	-40~85°C
Operating wavelength	1310nm, 1550nm	Ferrule Concentricity	≤1um

Specification of SC/APC 2.0mm/3.0mm Connector

Fiber Count	Simplex	Insertion Loss	≤0.25dB
Fiber Mode	Single Mode	Return Loss	≥60dB (APC)
Polish Type	APC	Durability	>1000times
Cable Diameter	2.0mm/3.0mm	Operating Temp	-40~85°C
Operating wavelength	1310nm, 1550nm	Ferrule Concentricity	≤1um
