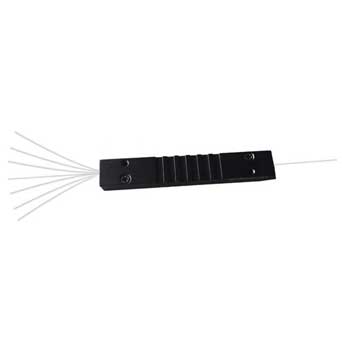

PM (N+1)x1 Pump Combiner

Name: PM (N+1)x1 Pump Combiner
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

PM (n + 1) X1 polarization maintaining fiber combiner of PHX has the advantages of high pump beam combining efficiency, small signal insertion loss, high extinction ratio, stability and reliability. It is suitable for fiber lasers, fiber amplifiers, sensing systems and scientific research and test equipment.

Get Quote Now

Features of PM (N+1)x1 Pump Combiner

1.Low insertion loss

2. High extinction ratio

3. Stable and reliable

Parameters of PM (N+1)x1 Pump Combiner

Port	PM（1+1）X1, PM（2+1）X1			PM（6+1）X1			PM（18+1）X1
Pumping wavelength	800~1000nm
Signal wavelength	800~1000nm or 1450~1600nm
Signal input fiber	X/125	X/125	X/125 or 20/400	X/125 or X/250 or 20/400			X/125
Pumping fiber	105/125 0.15NA/0.22NA		X/125 0.15NA/0.22NA	105/125 0.15NA/0.22NA		X/125 0.15NA/0.22NA	X/125 0.15NA/0.22NA
			200/220 0.22NA			200/220 0.22NA	200/220 0.22NA
Output fiber	Y/125	Y/125	20/400	Y/125	Y/250	20/400	20/400
Pumping efficiency	＞90%	＞93%	＞95%	＞90%	＞93%	＞95%	＞95%
Signal loss	＜0.7dB	＜0.7dB	＜0.7dB	＜0.7dB			＜0.7dB
Total carrying power	200W	300W	500W	300W	600W	900W	2500W
Return loss	＞45dB
Extinction ratio	＞18dB
Package size	φ4X60nm、70X12X8nm、100X15X10nm
Operation temperature	0~+75℃
Storage temperature	-40~+85℃
