FC/UPC SM Connector

FC/UPC SM Connector

PHX design, develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.
Get Quote Now
FC/UPC SM Connector
FC/UPC SM Connector
FC/UPC SM Connector
FC/UPC SM Connector

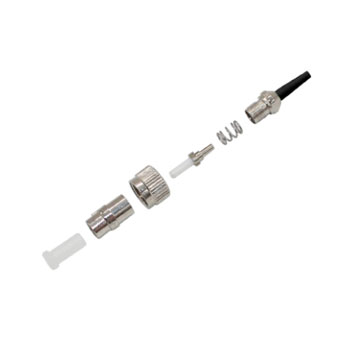

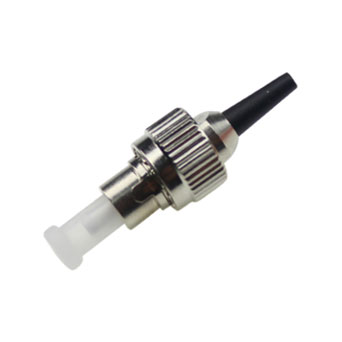

FC/UPC 0.9mm Connector

FC/UPC 0.9mm Connector

Connector Parts: Dust Cap, Front Sleeve, Outer Frame, Ferrule Assembly, Spring, Adjusted Rear Sleeve, Black boot

Boot Optional Colors: Black, Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

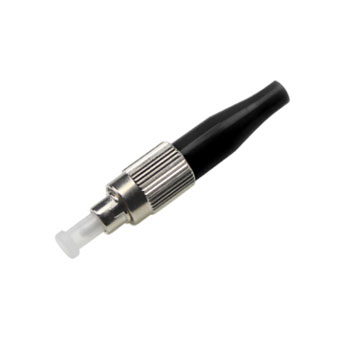

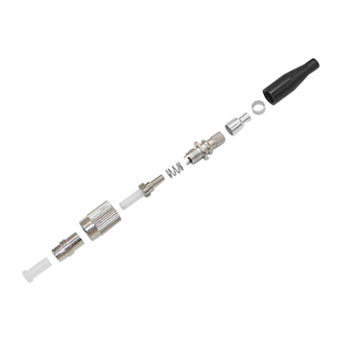

SC/UPC 2.0/3.0mm Connector

SC/UPC 2.0/3.0mm Connector

Connector Parts: Dust Cap, Front Sleeve, Outer Frame, Ferrule Assembly, Spring, Adjusted Rear Sleeve, Riveting Ring, Ring, Black boot

Boot Optional Colors: Black, Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

Specification of FC/UPC 0.9mm Connector

Fiber Count

Simplex

Insertion Loss

≤0.25dB

Fiber Mode

Single Mode

Return Loss

≥55dB (UPC)

Polish Type

UPC

Durability

>1000times

Cable Diameter

0.9mm

Operating Temp

-40~85°C

Operating wavelength

1310nm, 1550nm

Ferrule Concentricity

≤1um



Specification of SC/UPC 2.0/3.0mm Connector

Fiber Count

Simplex

Insertion Loss

≤0.25dB

Fiber Mode

Single Mode

Return Loss

≥55dB (UPC)

Polish Type

UPC

Durability

>1000times

Cable Diameter

2.0/3.0mm

Operating Temp

-40~85°C

Operating wavelength

1310nm, 1550nm

Ferrule Concentricity

≤1um
