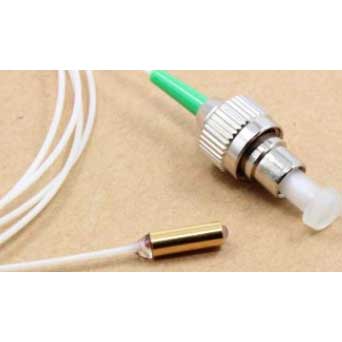

G-lens Fiber Optic Collimator

Name: G-lens Fiber Optic Collimator
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

Fiber collimator by single fiber optical fiber end packaged fiber perfect alignment with Lens, Lens are mainly C - Lens (spherical) and G - Lens (plane) two kinds. For packaging tube, there are mainly two gold-plated glass tube and pipe. According to the different capillary diameter, with a variety of outside diameter of the collimator. Function of fiber collimator is the output from optical fiber into a collimating light (parallel light), or to the outside world parallel light (parallel) approximation coupled into the fiber optic transmission. The products are widely used optical devices or optical field of research and experiment.

Get Quote Now

Features of Grin Lens Fiber Collimator for Sale

1. Low insertion loss

2. High return loss

3. Optical path glue-free process

4. A variety of od specifications

5. Precise alignment package

Parameters of Grin Lens Fiber Collimator

Project	Parameter index
Central wavelength（CW）	1260nm~1650nm	1260nm~1650nm
Typical insertion loss	0.16dB	0.21dB
Maximum insertion loss	0.2	0.25
Typical return loss	65	65
Minimum return loss	60	60
Maximum acceptance angle	0.15°
Maximum beam divergence angle	0.25°
Maximum beam diameter	0.5mm
Maximum optical power input	300mW
Maximum tension	5N
Working temperature	-20°C~+70°C
Storage temperature	-40°C~+85°C
Fiber type	SMF-28,MMF50/125μm或MMF62.5/125
Length and diameter of optical fiber	1M，0.25mm or 0.9mm
Package size (outer diameter * length)	∮1.010mm（Glass tube）、∮1.310mm（Glass tube or Gold Plated tube ）、∮1.810mm（Glass tube or Gold Plated tube）、∮2.7810mm（Glass tube）、∮3.2*10mm（Gold Plated tube）
