Shenzhen Puhuixin Tecnhnology Co., Ltd.

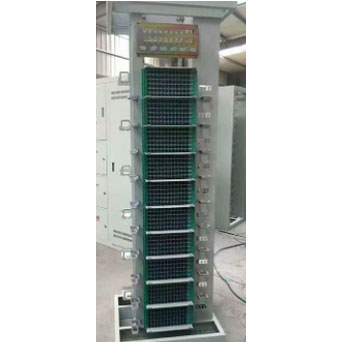

ODF Optical Cable Cabinet

648 Core Three-network Integrated Optical Cable Cabinet ODF Optical Cable Cabinet

The wiring box adopts a drawer-type structure, that can be drawn out during operation, put back after completion. The use of galvanized cold-rolled steel plate and surface spraying process, optical fiber distribution plate using doped anti - ene material spray shrinkage material, light and flexible, but strong and durable, with cable introduction, fixed and protection function, cable terminal and tail fiber fusion function, users can choose the number of units or flanges according to the actual demand.
Get Quote Now
648 Core Three-network Integrated Optical Cable Cabinet ODF Optical Cable Cabinet

Specification of ODF Box

Working Temperature

-40℃~+60℃

Environmental Humidity

≤95% (+40℃)

Atmospheric Pressure

70 kPa~106 kPa

Insulation Resistance

The insulation resistance between the grounding device and the metal parts of the box is not less than 2 x 104M ω /500V (DC).

Resistance to Voltage

The voltage between the grounding device and the metal parts of the box is not less than 3000V (DC) /1min.

Insertion Loss

≤0.3dB

Return Loss

PC ≥45dB, UPC ≥50dB, APC ≥60dB
