ST/UPC SM Connector

Name: ST/UPC SM Connector
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

PHX design, develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.

Get Quote Now

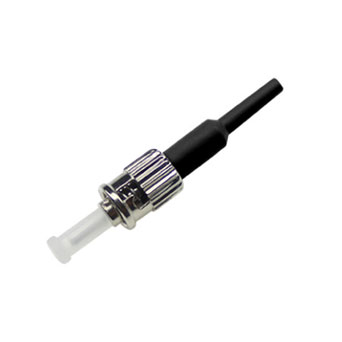

ST UPC 0.9mm Connector

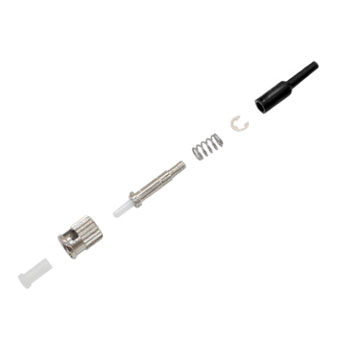

Connector Parts: Dust Cap, Ferrule Assembly, Spring, Outer Frame, Snap Ring, Black Boot

ST UPC 0.9mm Connector

Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

ST UPC 0.9mm Connector

Boot Optional Length: 24mm, 26.5mm

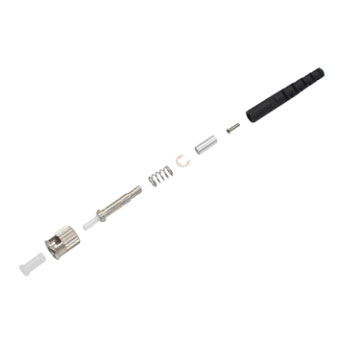

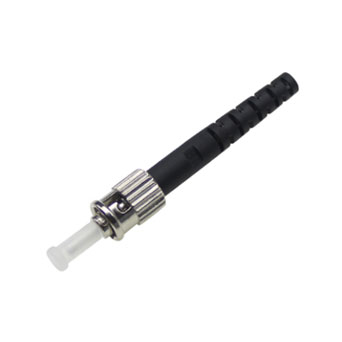

ST UPC 2.0/3.0mm Connector

Connector Parts: Dust Cap, Front Sleeve, Outer Frame, Ferrule Assembly, Spring, Adjusted Rear Sleeve, Riveting Ring, Ring, Black boot

ST UPC 2.0/3.0mm Connector

Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

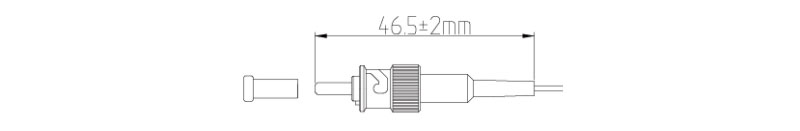

Specification of ST UPC 0.9mm Connector

Fiber Count	Simplex	Insertion Loss	≤0.25dB
Fiber Mode	Single Mode	Return Loss	≥55dB (UPC)
Polish Type	UPC	Durability	>1000times
Cable Diameter	0.9mm	Operating Temp	-40~85°C
Operating wavelength	1310nm, 1550nm	Ferrule Concentricity	≤1um

Specification of ST UPC 2.0/3.0mm Connector

Fiber Count	Simplex	Insertion Loss	≤0.25dB
Fiber Mode	Single Mode	Return Loss	≥55dB (UPC)
Polish Type	UPC	Durability	>1000times
Cable Diameter	2.0/3.0mm	Operating Temp	-40~85°C
Operating wavelength	1310nm, 1550nm	Ferrule Concentricity	≤1um
