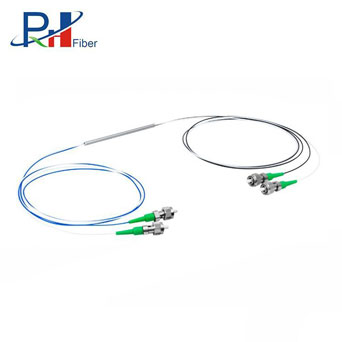

3 Port Fiber Optic Circulator

3 Port Fiber Optic Circulator

1550 (1460~1620nm) 3Ports Circulator, B657.A1 bare fiber 1m, Metal tube φ5.5*5Lmm, without connection.
Get Quote Now
3 Port Fiber Optic Circulator

Specifications of 3 Port Fiber Optic Circulator

Parameters

Specification

Unit

Note

Operating Wavelength

1260~1370 or 1460~1620

nm


Isolation

>50 (Typical 40)

dB

Λc,23℃

Insertion Loss

<0.8

dB


Return Loss

>50

dB


PDL

≤0.15

dB


TDL

≤0.12

dB


WDL

≤0.2

dB


PMD

<0.05

ps


Directivity

>50

dB


Optical Power

<500

mw


Operation Temperature

-40~+85


Storage Temperature

-40~+85


Fiber Type

G657.A1

/


Pigtail Length

1.0

m


Connector

Without connector

/


Dimensions

φ5.5XL50

mm
