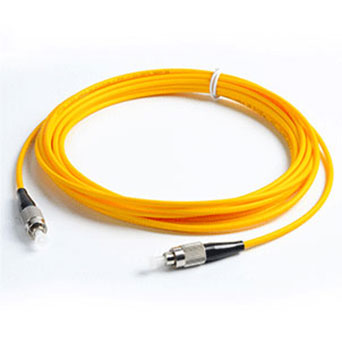

FC/UPC Fiber Optic Patch Cord

Name: FC/UPC Fiber Optic Patch Cord
Brand: Shenzhen Puhuixin Tecnhnology Co., Ltd.

PHXFIBER Optical Fiber Patch Cords include LC, FC, SC, ST, MU, MPO/MTP, MTRJ, SMA, E2000 and so on. They are mainly used in fiber optical communication systems, such as CATV, LAN, telecommunications networks, Gigabit applications, ATM Ethernet and other fiber optical instruments or optical measurement systems. The non-standard product can be customized.

Get Quote Now

Specifications

Parameters	Unit	Min	Typical	Max
Operation Wavelength**	nm	850,980,1060,1310,1550
Insertion Loss*	dB		0.2	0.3
Repeatability (MM)	dB			0.1
Repeatability (SM)	dB			0.15
Durability	dB			0.1
Extinction Ratio (PM)	dB	22	25
Power Handling **	mW			300
Return Loss	dB	50	55	60
Tensile Load	N			5
Operation Temperature	°C	-40		85
Storage Temperature	°C	-40		85
Fiber Type**	NA	HI1060, PM980 fiber, PM1550

*The above specification is without a connector.

**Other specifications can be made on customer request.

Ordering Information

POL	XX	XX	X	XX	XX/XX
	Operating Wavelength	Fiber Type	Fiber Jacket	Fiber Length	Connector
	98=980	SM	B=250um	Fiber Length	FC/UPC
	03=1030	MM	L=900um	10=1m
	55=1550	PM	S=specify	15=1.5m
	…	…	…	20=2m	…
				SS=specify
